Side frame
89.931.040
Item number: 89.931.040
Main URL: https://configurator.lista.com/en/Side-frame-mobile-single-sided-for-assembly-trolley-WxDxH-800x510x1600mm-Capri-blue-RAL-5019-3633049.html
Main Picture: https://configurator.lista.com/medien/3131193/derivate/89932_040_LIS_e_shop_1000.png

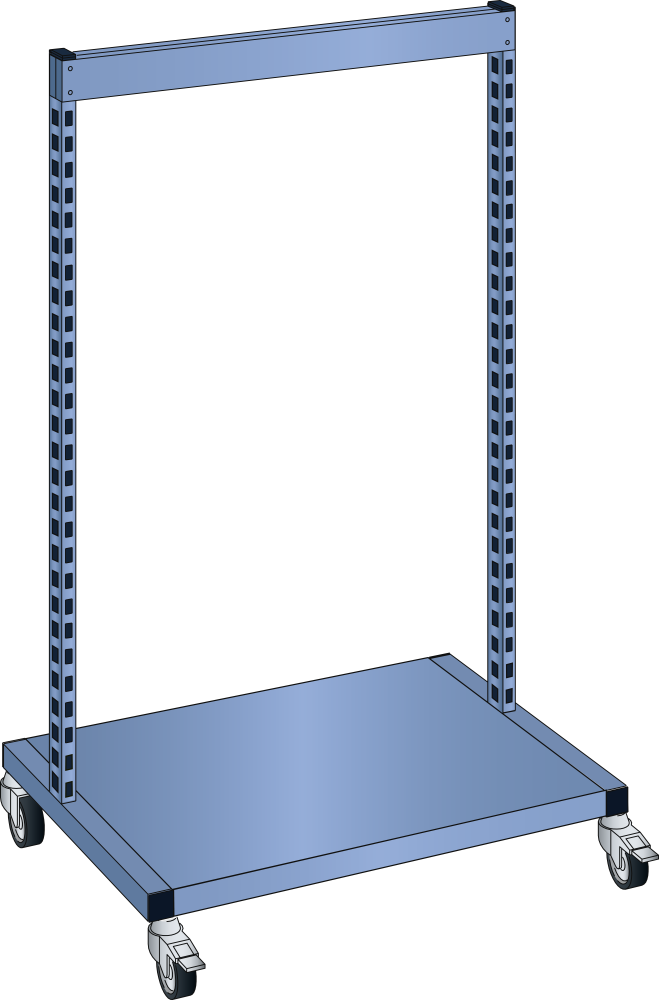

Side frame mobile single-sided for assembly trolley (WxDxH) 800x510x1600mm Capri blue RAL 5019
Other color variants
-
colour as described (individual colour request)
001 -
Light blue RAL 5012
010 -
Light grey RAL 7035
020 -
Reseda green RAL 6011
030 -
Grey metallic NCS S 6502-B
050 -
Black NCS S 9000-N
060 -
Ruby red RAL 3003
070 -
Pigeon grey NCS S 4502-B
080 -
Gentian blue RAL 5010
090 -
Signal blue RAL 5005
100 -
Pure white RAL 9010
110 -
Grey aluminium RAL 9007
120 -
White aluminium RAL 9006
130 -
Pale grey NCS S 2000-N
140 -
Ultramarine blue RAL 5002
170 -
Grey-white RAL 9002
180 -
Sky blue RAL 5015
190 -
Anthracite grey RAL 7016
200 -
Brilliant blue RAL 5007
210 -
Turquoise blue RAL 5018
220 -
Pebble grey RAL 7032
230 -
Flame red RAL 3000
240 -
Slate grey RAL 7015
260 -
Orange RAL 2004
280
Accessories
Description
Mobile side frame: The assembly trolleys can have elements attached on both sides. The support pillars enable rear panels, adjustable shelves or container strips to be mounted without the use of screws. The assembly trolleys are equipped with 4 swivel castors, 2 of which have braking mechanisms. Wheel diameter 100 mm, rubber, grey, max. capacity 250 kg. Specification: side frame comprising crossbars, shelves and support pillars, made of steel profile, perforated on four sides at 50 mm increments. Colour: according to colour chart. Roller housing made of galvanised and chrome-plated sheet steel.
Notes

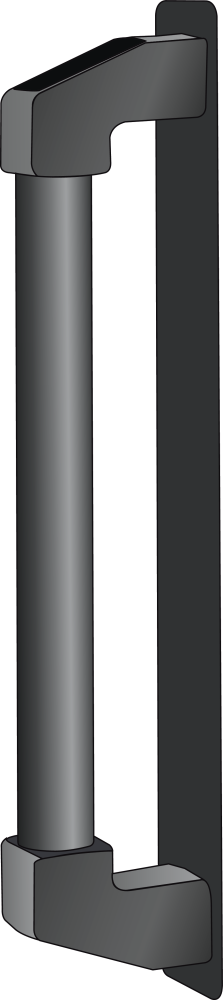

Mobile upright frames must have a push handle for safety reasons. Please confirm item no. 89.950.000.
Technical Data
Description
Side frame
Net weight kg
27
Module width mm
750
Width mm
800
Depth mm
510
Height mm
1600
Usable height mm
1250
Specification
single-sided
Colour
Capri blue RAL 5019
