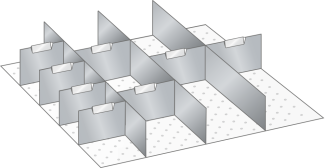

Slotted dividers and metal separators
56.178.000
Set slotted partitions and metal dividers (WxDxFH) 500x600x200mm
remove
add
add_shopping_cart
Description
Metal separators: Allow drawers to be subdivided into small compartments as desired in combination with slotted partitions. The labelling field is offset across its entire width and is used to hold clip-on label holders or barcode holders. The forward bottom edge turns allow the metal separators to be fastened to the perforated drawer bottom. The dimensions are punched onto each metal separator. Specification: aluminium.
Slotted partitions on either side: For lengthwise and crosswise division of drawers. Slotted grid in units of 17 mm as on the drawer walls. The bottom edge turns allow the slotted partitions to be fastened to the perforated drawer bottom. Specification: sheet steel, fitting material included. Colour: grey, NCS S 4502-B.
Technical Data
Description
Slotted dividers and metal separators
Net weight kg
3
Height mm
150
For front height mm
200, 250
Drawers useful width mm
500
Drawers useful depth mm
600
Specifications
3 slotted partitions, 4 dividers 100, 4 dividers 150
