Picking trolley
70.632.090
Item number: 70.632.090
Main URL: https://configurator.lista.com/en/Picking-trolley-27x36E-WxDxH-564x725x760mm-KEY-Lock-Gentian-blue-RAL-5010-2853311.html
Main Picture: https://configurator.lista.com/medien/3297802/derivate/lis_ssk_70632090_e_shop_1000.png

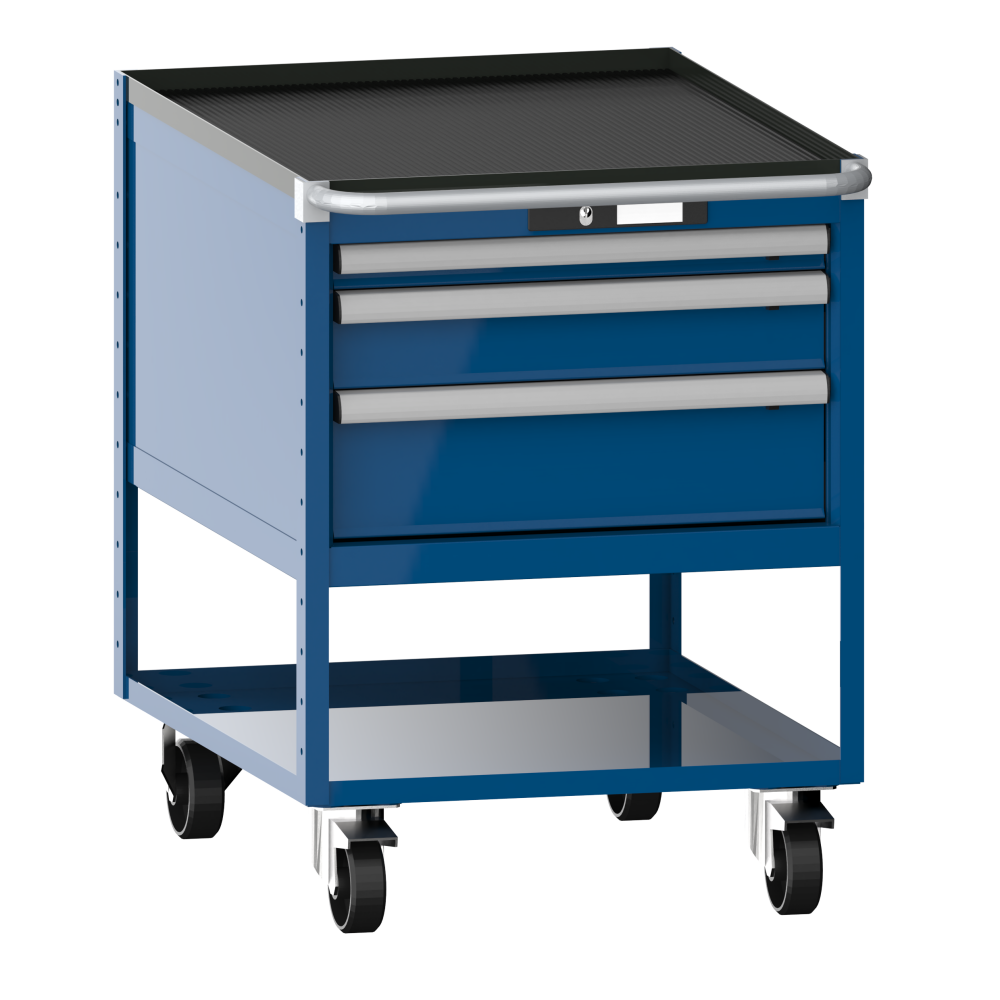

Picking trolley 27x36E (WxDxH) 564x725x760mm KEY Lock Gentian blue RAL 5010
Other color variants
-
colour as described (individual colour request)
001 -
Light blue RAL 5012
010 -
Light grey RAL 7035
020 -
Reseda green RAL 6011
030 -
Capri blue RAL 5019
040 -
Grey metallic NCS S 6502-B
050 -
Black NCS S 9000-N
060 -
Ruby red RAL 3003
070 -
Pigeon grey NCS S 4502-B
080 -
Signal blue RAL 5005
100 -
Pure white RAL 9010
110 -
Grey aluminium RAL 9007
120 -
White aluminium RAL 9006
130 -
Pale grey NCS S 2000-N
140 -
Ultramarine blue RAL 5002
170 -
Grey-white RAL 9002
180 -
Sky blue RAL 5015
190 -
Anthracite grey RAL 7016
200 -
Brilliant blue RAL 5007
210 -
Turquoise blue RAL 5018
220 -
Pebble grey RAL 7032
230 -
Flame red RAL 3000
240 -
Slate grey RAL 7015
260 -
Orange RAL 2004
280 -
Light grey RAL 7035 / Ruby red RAL 3003
512 -
Light grey RAL 7035 / Light blue RAL 5012
514 -
Light grey RAL 7035 / Signal blue RAL 5005
518 -
Light grey RAL 7035 / Grey metallic NCS S 6502-B
519 -
Grey metallic NCS S 6502-B / Light grey RAL 7035
521 -
Ruby red RAL 3003 / Grey metallic NCS S 6502-B
522
Description
KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.
Drawer safety devices, safety catch on right: This is the minimum requirement for mobile drawer cabinets. Single-sided drawer safety device on the right can be released with one hand and prevents accidental opening of the drawer if the cabinet is unlocked.
Notes
For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.
Technical Data
Description
Picking trolley
Net weight kg
75
LISTA units
27 x 36 E
Width mm
564
Depth mm
725
Height mm
760
Housing height mm
383
Clear height mm
300
Number of front heights mm
1 x 50 / 1 x 100 / 1 x 150
Drawer safety catch
Safety catch on right
Drawers useful width mm
459
Drawers useful depth mm
612
Number of drawers
3
Drawer load capacity kg
75
Locking system
KEY Lock
Height raised edge incl. push bar mm
25
Height pair of castor supports mm
137
Castor load capacity kg
400
Direction of travel
lengthwise
Specifications
1 raised edge on 4 sides incl. ribbed mat, 1 push-bar, 1 set of support brackets (upper), 1 pair castor holders with nylon castors Ø 100 mm
Colour
Gentian blue RAL 5010
