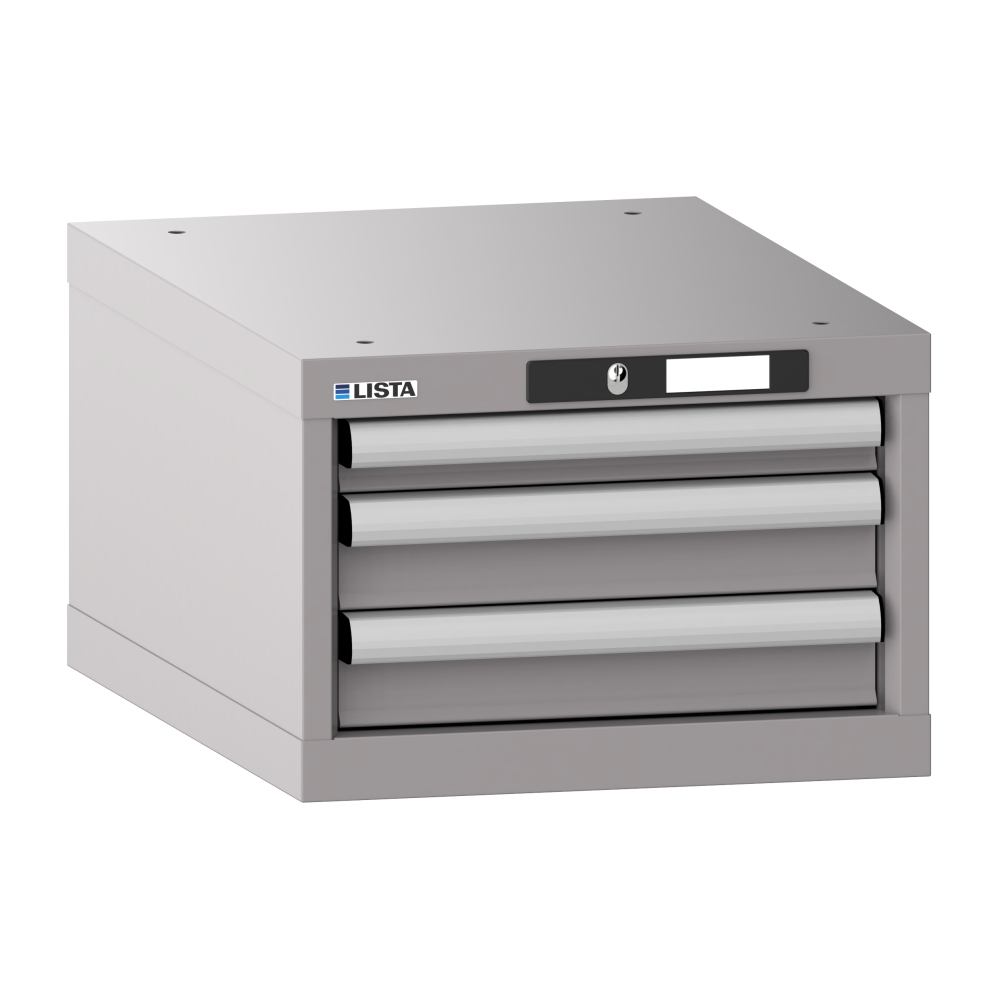

Drawer cabinet

78.405.120
Drawer cabinet 18x27E (WxDxH) 411x572x283mm 3 drawers (1x50/2x75) 75kg CODE Lock Grey aluminium RAL 9007
Adjust product quantity or remove products from the cart

Other color variants

Accessories

Description

CODE Lock: When locking with CODE Lock, the key is replaced by a number combination. A simple four to six-digit code is all that is needed to open the product. Manual opening/locking with number code.

Drawer safety device standard: Standard configuration including single-drawer blocking system

Notes

For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.

Technical Data

Description
Drawer cabinet
Net weight kg
33
LISTA units
18 x 27 E
Width mm
411
Depth mm
572
Height mm
283
Clear height mm
200
Number of front heights mm
1 x 50 / 2 x 75
Drawer safety catch
Standard
Drawer clear dimensions (W x D) mm
300 x 450
Drawers useful width mm
306
Drawers useful depth mm
459
Number of drawers
3
Drawer load capacity kg
75
Locking system
CODE Lock
Colour
Grey aluminium RAL 9007
Product specific advantages
add_box

Maximum stability
with load capacity of housing up to 4 t and load capacity of drawers 75 or 200 kg

add_box

Maximum space utilisation
since drawers can be fully extended and drawer cladding heights are optimised

add_box

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

add_box

Outstanding safety features
Safety catch to prevent the drawers from falling out and single-drawer blocking system as an anti-tilt mechanism

add_box

Corrosion protection
with electrophoretic dip painting and environmentally-friendly powder coating

add_box

Optimum order and organisation
thanks to special LISTA partition material for every purpose and perforated, slotted drawers

add_box

Professional labelling
with LISTA Script labelling software and handles which fold upwards for inserting the labels

add_box

Extremely quiet
thanks to differential pull-out without a crossbar

add_box

Flexible adaptation options
with pre-perforated holes for table tops (punch-outs), castors, drawers, locking systems for easy retrofitting and refitting
