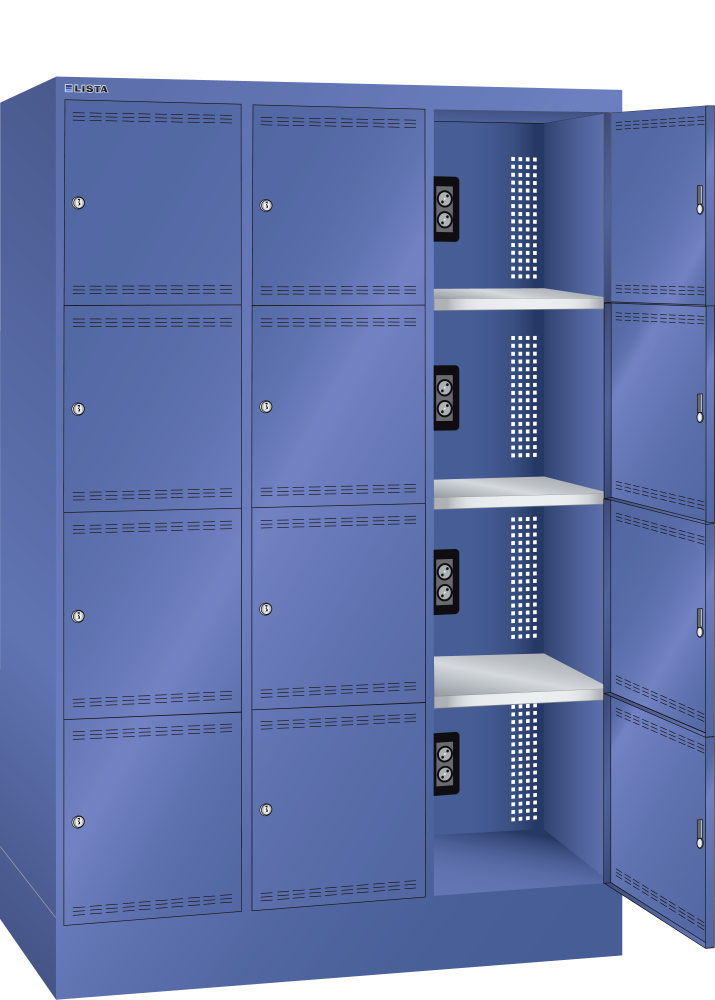

Battery charging cabinet

98.422.210
Battery charging cabinet with compartments (WxDxH) 1205x585x1795mm 3x4 compartments type F 1x230V, 1xRJ45 KEY Lock Brilliant blue RAL 5007

Other color variants

Description

KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.

Notes

report

Ensure that each connection point to the on-site grid is equipped with an RCD (rated differential current of 30 mA) and protected with a 16 A (CH = 10 A) fuse.

Incl. 2 x supply cable

Technical Data

Description
Battery charging cabinet
Net weight kg
123
Width mm
1205
Depth mm
585
Height mm
1795
Locking system
KEY Lock (Cylinder lock)
Number of compartments
3 x 4
Number of compartments side by side
3
Number of compartments stacked
4
Compartment width mm
400
Compartment height mm
400
Clear compartment width mm
340
Clear compartment depth mm
470
Clear compartment height mm
380
Type
F (Type CEE 7/7)
Module per compartment
1 x 230 V, 1 x RJ45
Specifications
incl. 2 connecting cable
Specification
with base, 150 mm
Door type
Compartment doors
Door material
Solid sheet
Hinge pins mounted
mounted on the right
Door specification
Air vents at the top and bottom, with label frame and cambered
Colour
Brilliant blue RAL 5007
Product specific advantages
add_box

Flexible range of applications
with charging options for battery-operated electrical machines, BDE devices, notebooks, tablets, smartphones or e-bikes

add_box

Sophisticated ventilation
optimal air circulation thanks to ventilation holes at the front and back

add_box

Outstanding design diversity
with sockets, network sockets RJ45 and USB interfaces

add_box

Outstanding safety features
CE-compliant

add_box

Secure locking option
Devices are locked away at all times and are protected against unauthorised access
