Battery charging cabinet
394.041.240
Item number: 394.041.240
Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Flame-red-RAL-3000-3753816.html
Main Picture: https://configurator.lista.com/medien/3183604/derivate/62976_070_lis_aklsk_K1_e_shop_1000.png
Battery charging cabinet with 2 viewing window doors hinge mounted (WxDxH) 1000x580x1950mm type CH 2x4 (230V) on rear panel/power conduit, FI/LS 4 shelves CODE Lock Flame red RAL 3000
Other color variants
-
colour as described (individual colour request)
Item number: 394.041.001 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-colour-as-described-individual-colour-request-3753164.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183594/derivate/62976_020_lis_aklsk_K1_e_shop_1000.png
001 -
Light blue RAL 5012
Item number: 394.041.010 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Light-blue-RAL-5012-3753186.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183592/derivate/62976_010_lis_aklsk_K1_e_shop_1000.png
010 -
Light grey RAL 7035
Item number: 394.041.020 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Light-grey-RAL-7035-3753216.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183594/derivate/62976_020_lis_aklsk_K1_e_shop_1000.png
020 -
Reseda green RAL 6011
Item number: 394.041.030 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Reseda-green-RAL6011-3753246.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183596/derivate/62976_030_lis_aklsk_K1_e_shop_1000.png
030 -
Capri blue RAL 5019
Item number: 394.041.040 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Capri-blue-RAL-5019-3753276.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183598/derivate/62976_040_lis_aklsk_K1_e_shop_1000.png
040 -
Grey metallic NCS S 6502-B
Item number: 394.041.050 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Grey-metallic-NCS-S-6502-B-3753306.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183600/derivate/62976_050_lis_aklsk_K1_e_shop_1000.png
050 -
Black NCS S 9000-N
Item number: 394.041.060 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Black-NCS-S-9000-N-3753336.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183602/derivate/62976_060_lis_aklsk_K1_e_shop_1000.png
060 -
Ruby red RAL 3003
Item number: 394.041.070 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Ruby-red-RAL-3003-3753366.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183604/derivate/62976_070_lis_aklsk_K1_e_shop_1000.png
070 -

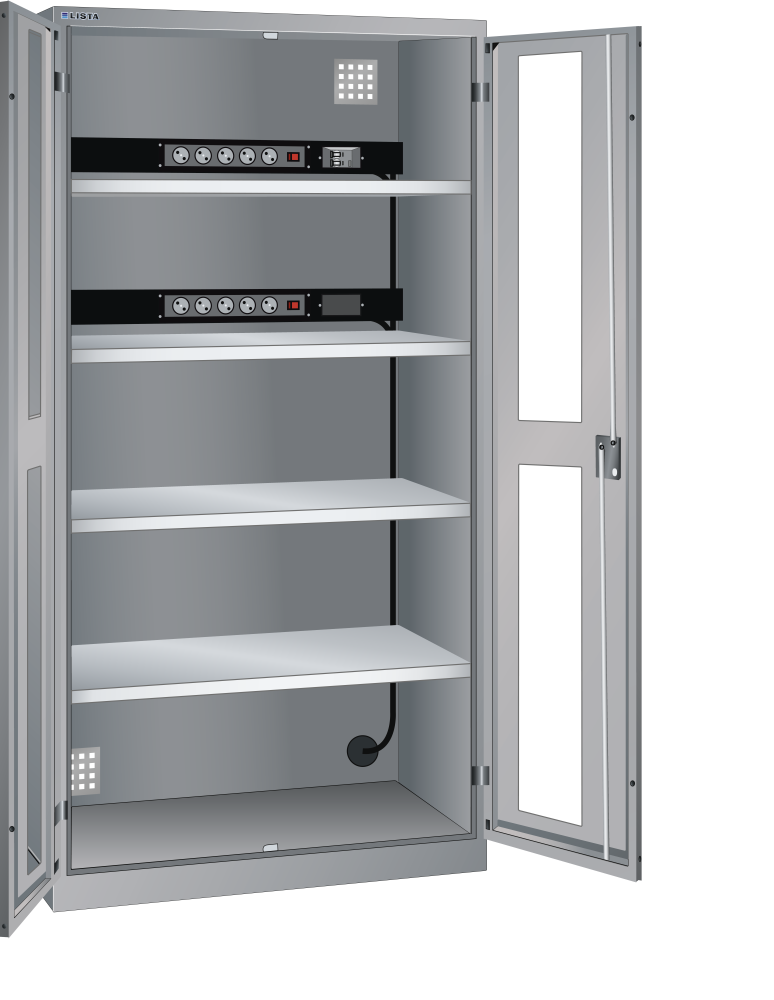

Pigeon grey NCS S 4502-B
Item number: 394.041.080 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Pigeon-grey-NCS-S-4502-B-3753396.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183606/derivate/62976_080_lis_aklsk_K1_e_shop_1000.png
080 -
Gentian blue RAL 5010
Item number: 394.041.090 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Gentian-blue-RAL-5010-3753426.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183608/derivate/62976_090_lis_aklsk_K1_e_shop_1000.png
090 -
Signal blue RAL 5005
Item number: 394.041.100 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Signal-blue-RAL-5005-3753456.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183610/derivate/62976_100_lis_aklsk_K1_e_shop_1000.png
100 -

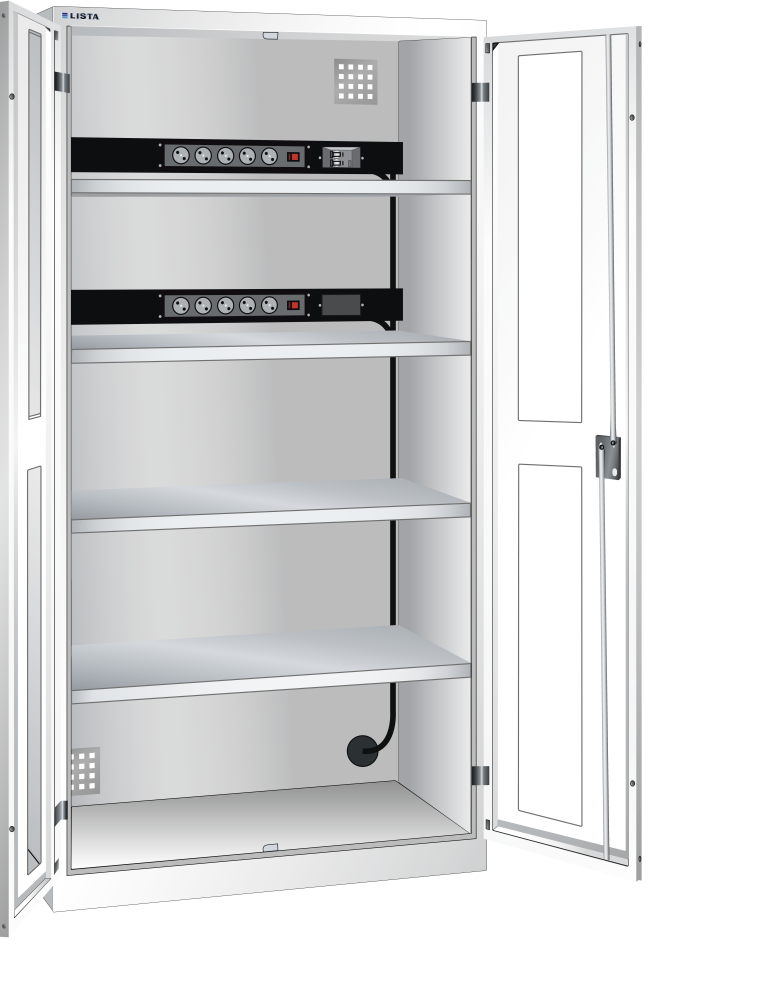

Pure white RAL 9010
Item number: 394.041.110 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Pure-white-RAL-9010-3753486.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183612/derivate/62976_110_lis_aklsk_K1_e_shop_1000.png
110 -
Grey aluminium RAL 9007
Item number: 394.041.120 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Grey-aluminium-RAL-9007-3753516.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183600/derivate/62976_050_lis_aklsk_K1_e_shop_1000.png
120 -
White aluminium RAL 9006
Item number: 394.041.130 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-White-aluminium-RAL-9006-3753546.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183600/derivate/62976_050_lis_aklsk_K1_e_shop_1000.png
130 -
Pale grey NCS S 2000-N
Item number: 394.041.140 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Pale-grey-NCS-S-2000-N-3753576.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183594/derivate/62976_020_lis_aklsk_K1_e_shop_1000.png
140 -
Ultramarine blue RAL 5002
Item number: 394.041.170 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Ultramarine-blue-RAL-5002-3753606.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183598/derivate/62976_040_lis_aklsk_K1_e_shop_1000.png
170 -
Grey-white RAL 9002
Item number: 394.041.180 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Grey-white-RAL-9002-3753636.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183614/derivate/62976_180_lis_aklsk_K1_e_shop_1000.png
180 -
Sky blue RAL 5015
Item number: 394.041.190 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Sky-blue-RAL-5015-3753666.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183592/derivate/62976_010_lis_aklsk_K1_e_shop_1000.png
190 -
Anthracite grey RAL 7016
Item number: 394.041.200 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Anthracite-grey-RAL-7016-3753696.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183602/derivate/62976_060_lis_aklsk_K1_e_shop_1000.png
200 -
Brilliant blue RAL 5007
Item number: 394.041.210 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Brilliant-blue-RAL-5007-3753726.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183610/derivate/62976_100_lis_aklsk_K1_e_shop_1000.png
210 -
Turquoise blue RAL 5018
Item number: 394.041.220 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Turquoise-blue-RAL-5018-3753756.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183616/derivate/62976_220_lis_aklsk_K1_e_shop_1000.png
220 -
Pebble grey RAL 7032
Item number: 394.041.230 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Pebble-grey-RAL-7032-3753786.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183600/derivate/62976_050_lis_aklsk_K1_e_shop_1000.png
230 -
Slate grey RAL 7015
Item number: 394.041.260 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Slate-grey-RAL-7015-3753846.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183602/derivate/62976_060_lis_aklsk_K1_e_shop_1000.png
260 -
Orange RAL 2004
Item number: 394.041.280 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Orange-RAL-2004-3753876.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183618/derivate/62976_280_lis_aklsk_K1_e_shop_1000.png
280 -
Light grey RAL 7035 / Ruby red RAL 3003
Item number: 394.041.512 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Light-grey-RAL-7035-Ruby-red-RAL-3003-3753906.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183620/derivate/62976_512_lis_aklsk_K1_e_shop_1000.png
512 -

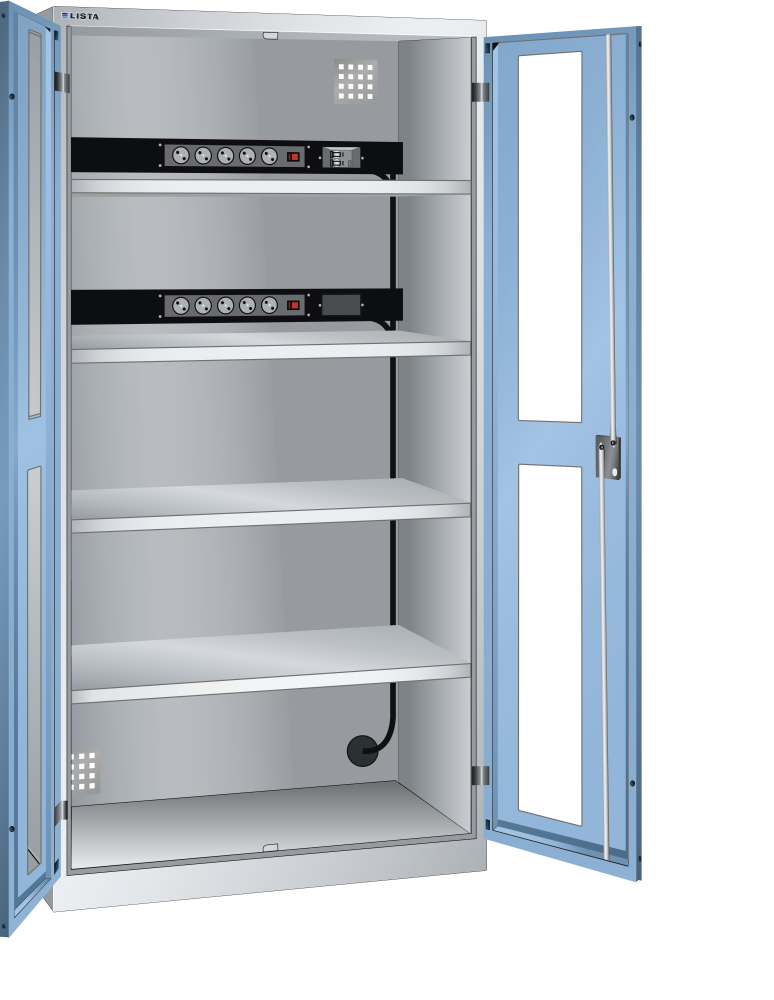

Light grey RAL 7035 / Light blue RAL 5012
Item number: 394.041.514 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Light-grey-RAL-7035-Light-blue-RAL-5012-3753936.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183622/derivate/62976_514_lis_aklsk_K1_e_shop_1000.png
514 -
Light grey RAL 7035 / Signal blue RAL 5005
Item number: 394.041.518 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Light-grey-RAL-7035-Signal-blue-RAL-5005-3753966.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183624/derivate/62976_518_lis_aklsk_K1_e_shop_1000.png
518 -
Light grey RAL 7035 / Grey metallic NCS S 6502-B
Item number: 394.041.519 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Light-grey-RAL-7035-Grey-metallic-NCS-S-6502-B-3772297.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183626/derivate/62976_519_lis_aklsk_K1_e_shop_1000.png
519 -
Grey metallic NCS S 6502-B / Light grey RAL 7035
Item number: 394.041.521 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Grey-metallic-NCS-S-6502-B-Light-grey-RAL-7035-3772323.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183628/derivate/62976_521_lis_aklsk_K1_e_shop_1000.png
521 -

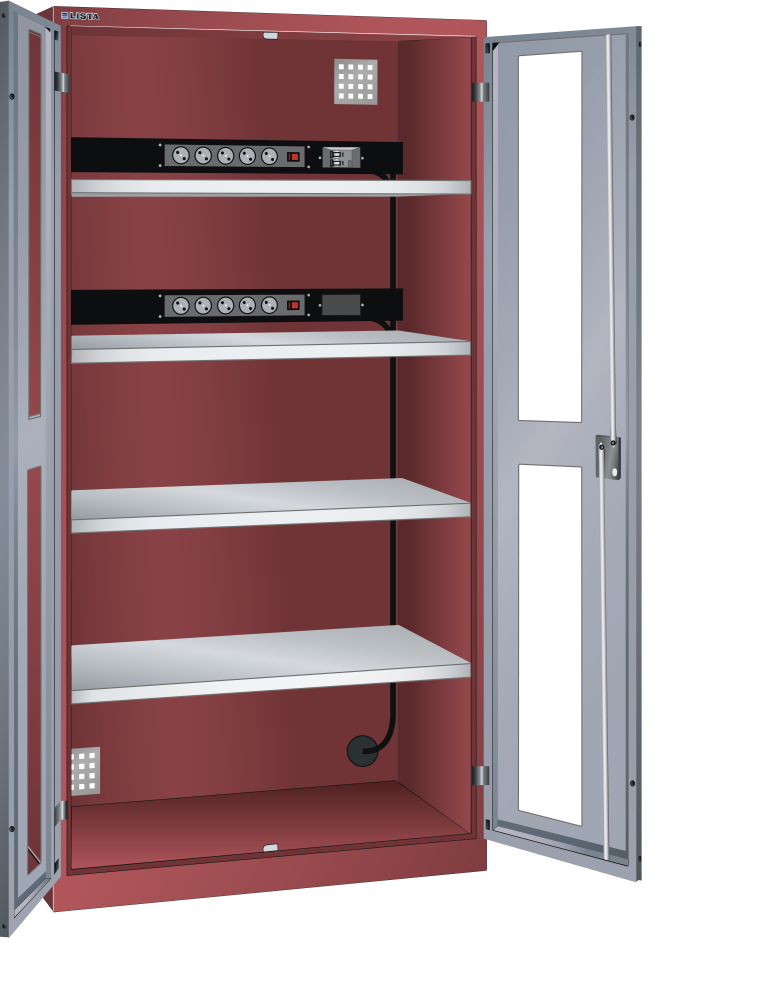

Ruby red RAL 3003 / Grey metallic NCS S 6502-B
Item number: 394.041.522 Main URL: https://configurator.lista.com/en/Battery-charging-cabinet-with-2-viewing-window-doors-hinge-mounted-WxDxH-1000x580x1950mm-type-CH-2x4-230V-on-rear-panelpower-conduit-FILS-4-shelves-CODE-Lock-Ruby-red-RAL-3003-Grey-metallic-NCS-S-6502-B-3772353.html?artikelgruppe=1282 Main Picture: https://configurator.lista.com/medien/3183630/derivate/62976_522_lis_aklsk_K1_e_shop_1000.png
522
Accessories
Description
Battery charging cabinets with hinged doors: Depending on the model, the cabinets are equipped with: galvanised adjustable shelves, 30 mm thick, load capacity 60 kg. Drawers painted, anthracite grey (RAL 7016), load capacity 50 kg. Power strips with on/off switch and 4 or 5 sockets, 230 V.
Doors with viewing window: The UV-resistant acrylic glass is break-proof and enables improved workstation organisation.
Hinge bearing assembly: Doors with hinge bearing assembly are required for fitting drawers and pull-out shelves. Doors are flush with the cabinet housing. Opening angle approx. 115°.
CODE Lock: When locking with CODE Lock, the key is replaced by a number combination. A simple four to six-digit code is all that is needed to open the product. Manual opening/locking with number code.
RCD/MCB: RCD = residual current protective device (16 A / 30 mA), MCB = miniature circuit breaker (CH = 10 A, D/F = 16 A)
Notes
*Retrofitting with drawers and pull-out shelves possible
With 1x thermal fuse
Actual width = 1002 mm
Technical Data
Description
Battery charging cabinet
Net weight kg
56
Width mm
1000
Actual width mm
1002
Depth mm
580
Height mm
1950
Clear height mm
1835
Number of adjustable shelves
4
Adjustable shelf load capacity kg
60
Locking system
CODE Lock
Number of power strips
2 x 4-socket (230V), RCD/MCB
Mounting position power strips
on rear panel/power conduit
Type
CH (Type T13)
Door type
Hinged doors
Door material
Viewing window
Hinge pins mounted
Hinge
Colour
Flame red RAL 3000
